Stock #
19587

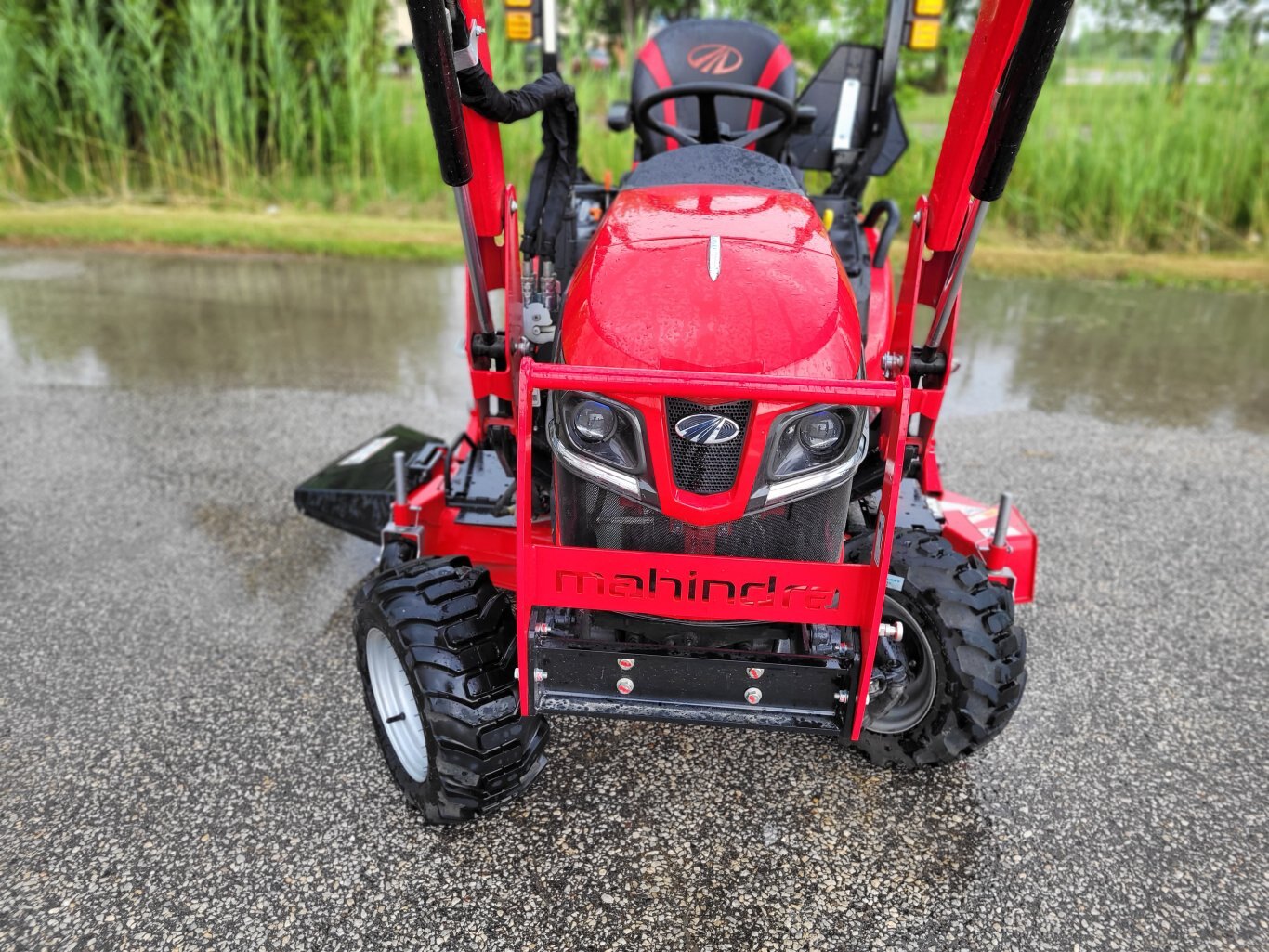

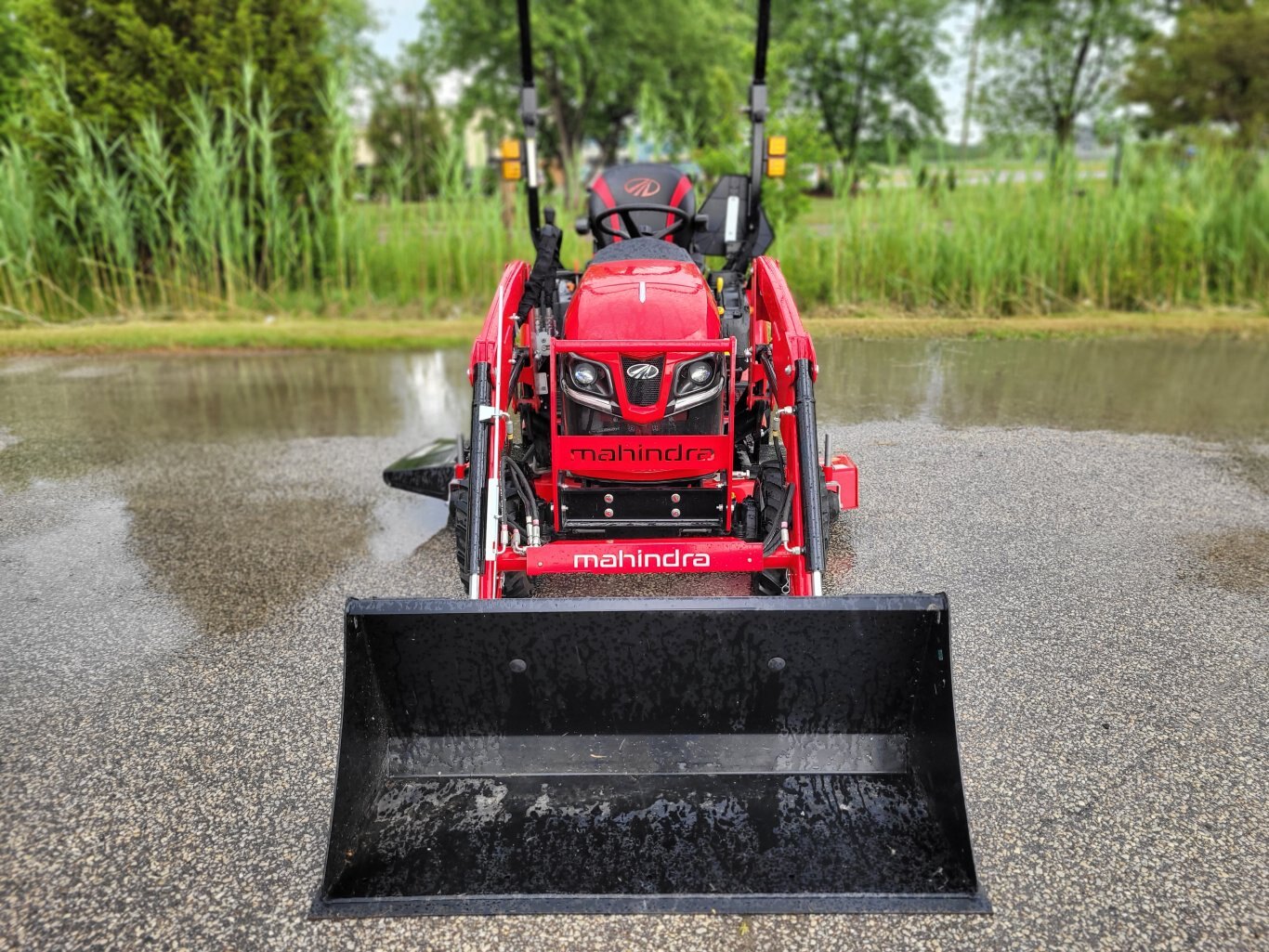

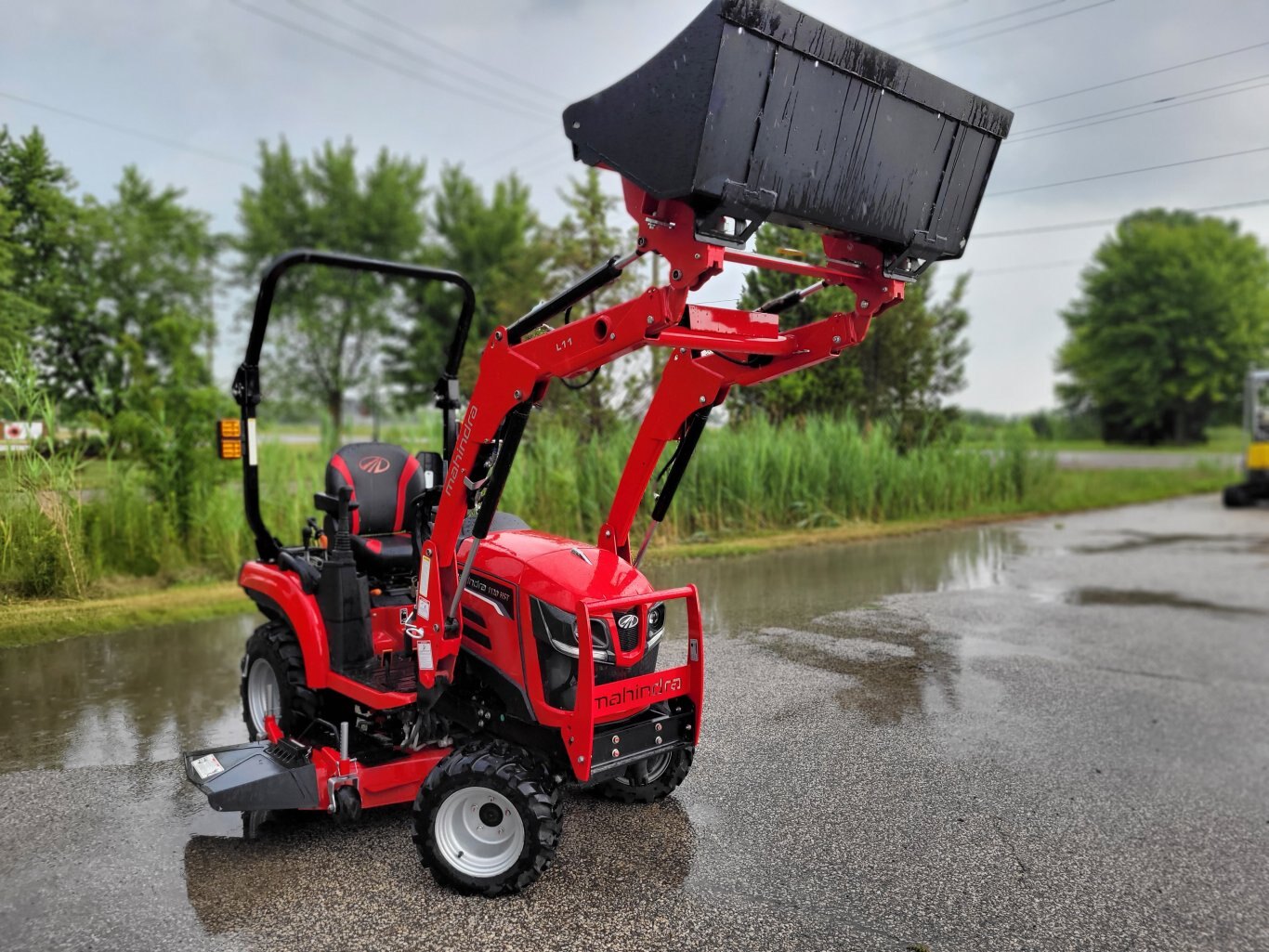

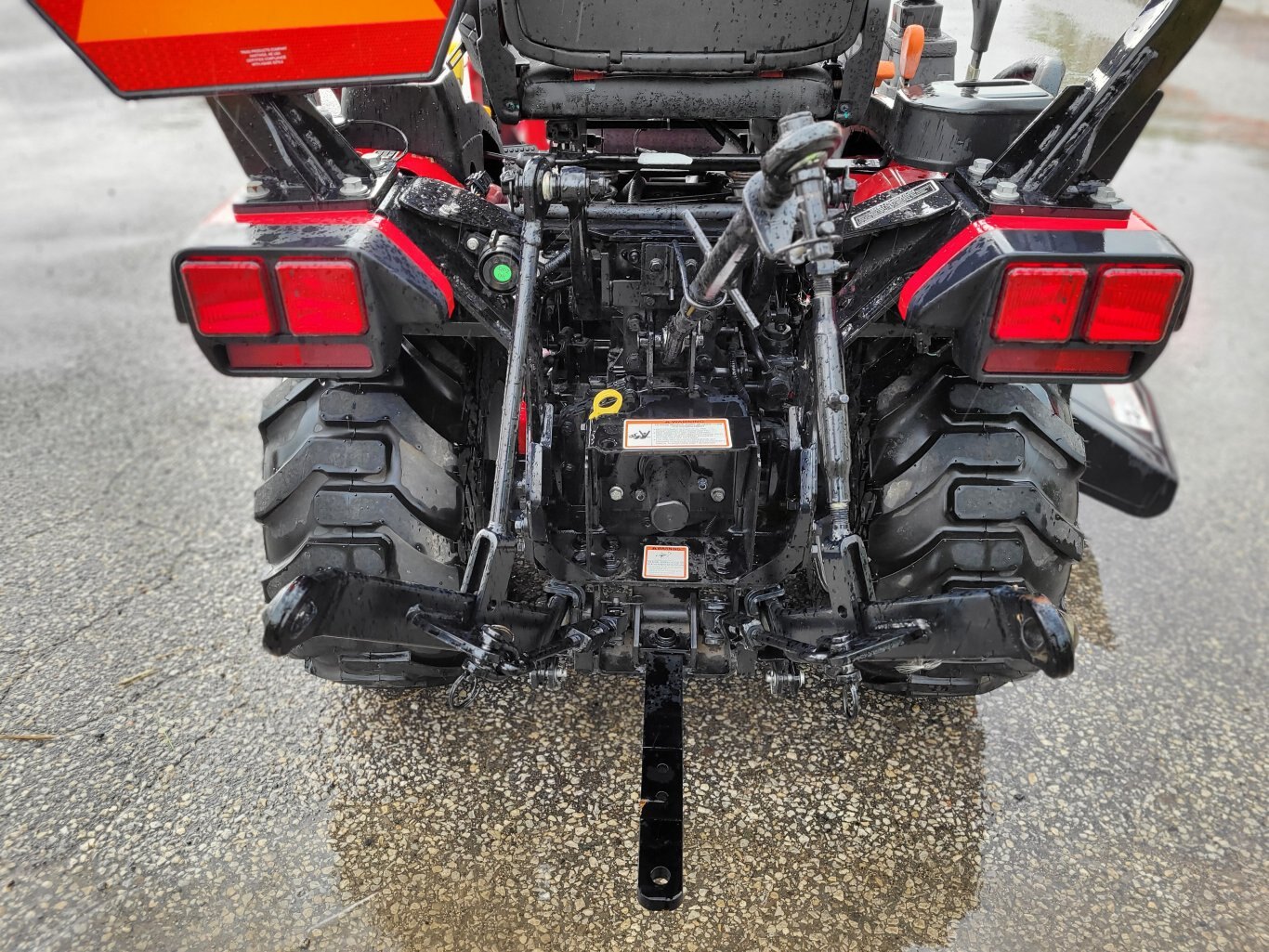

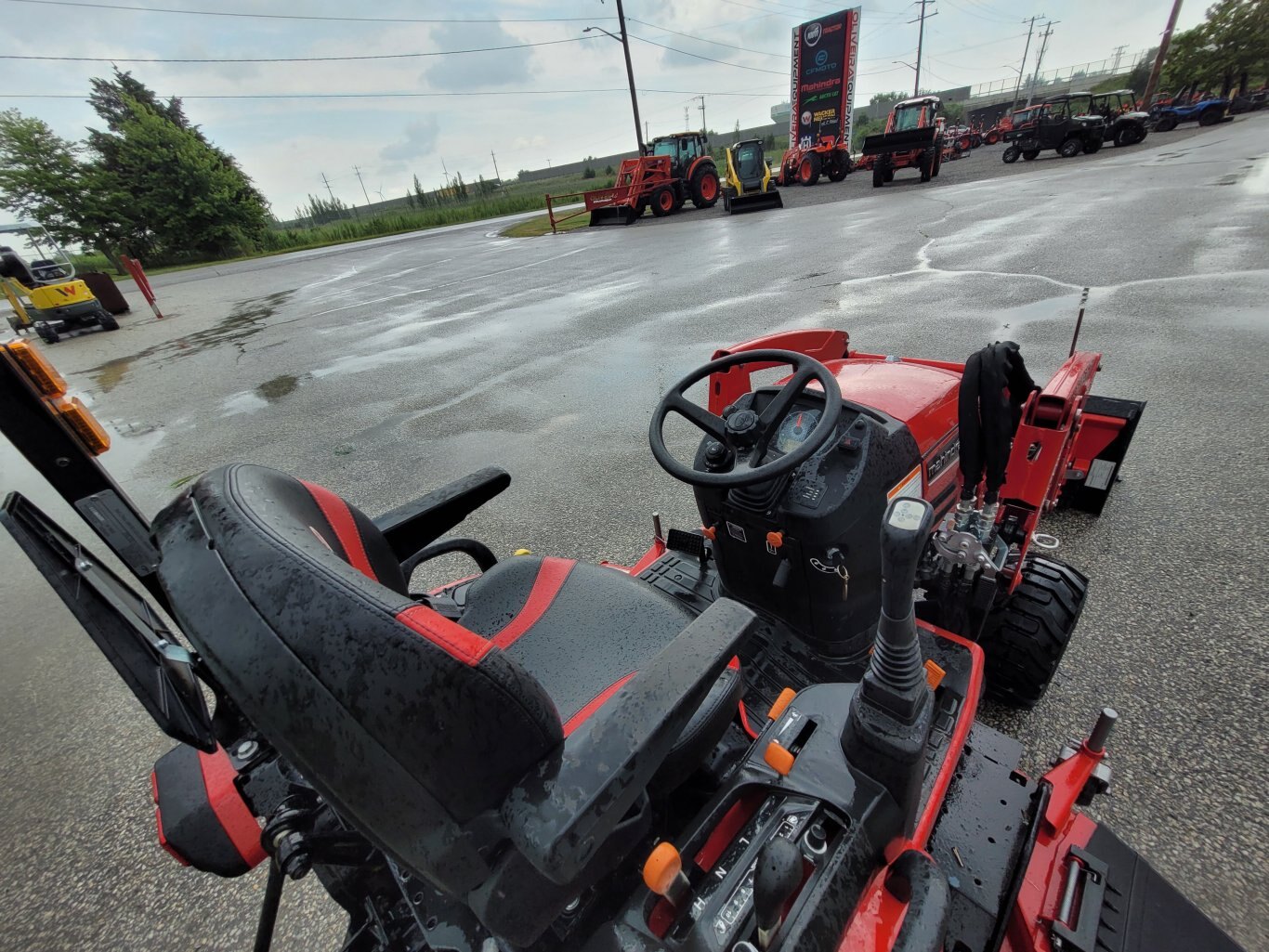

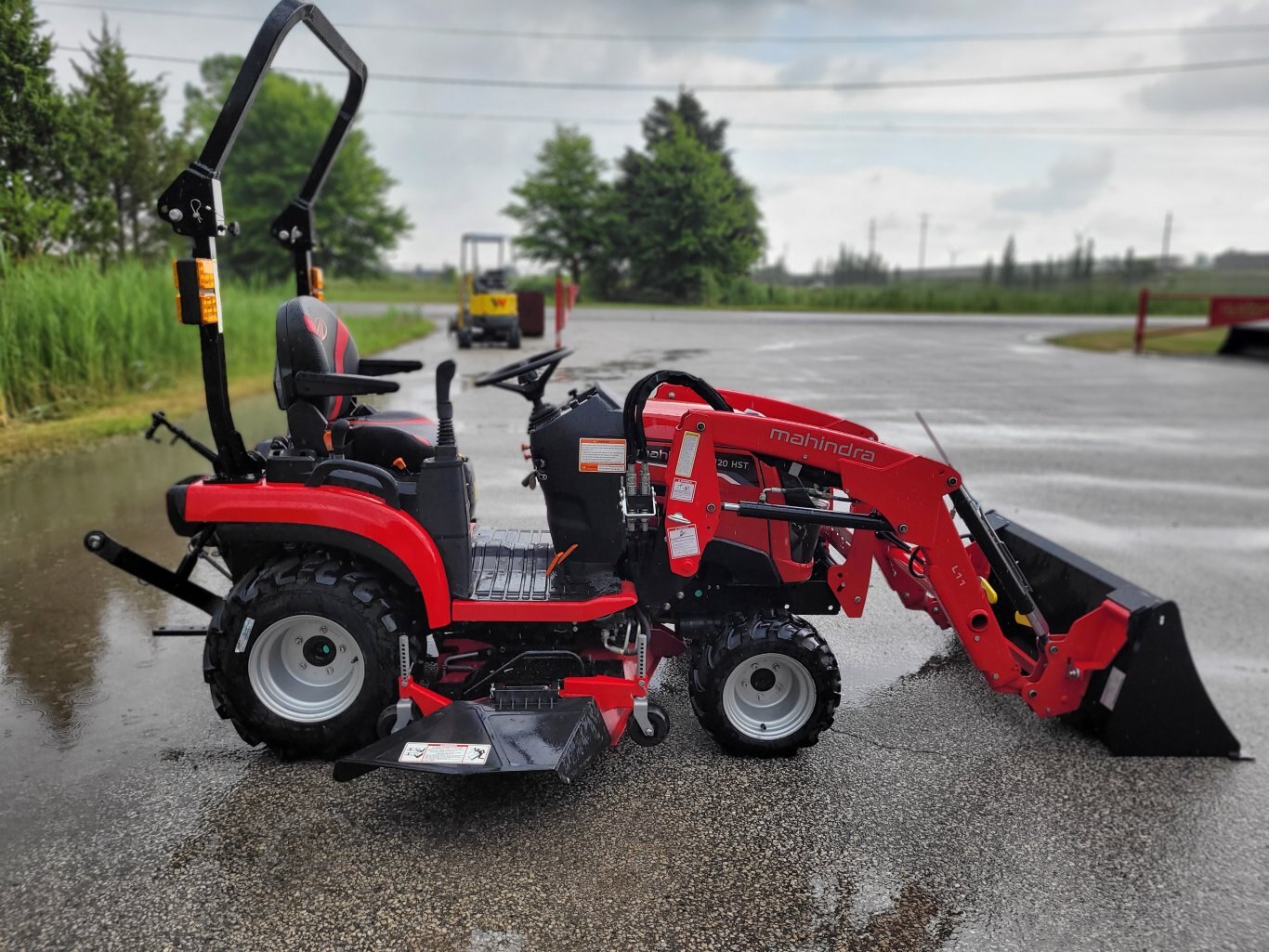

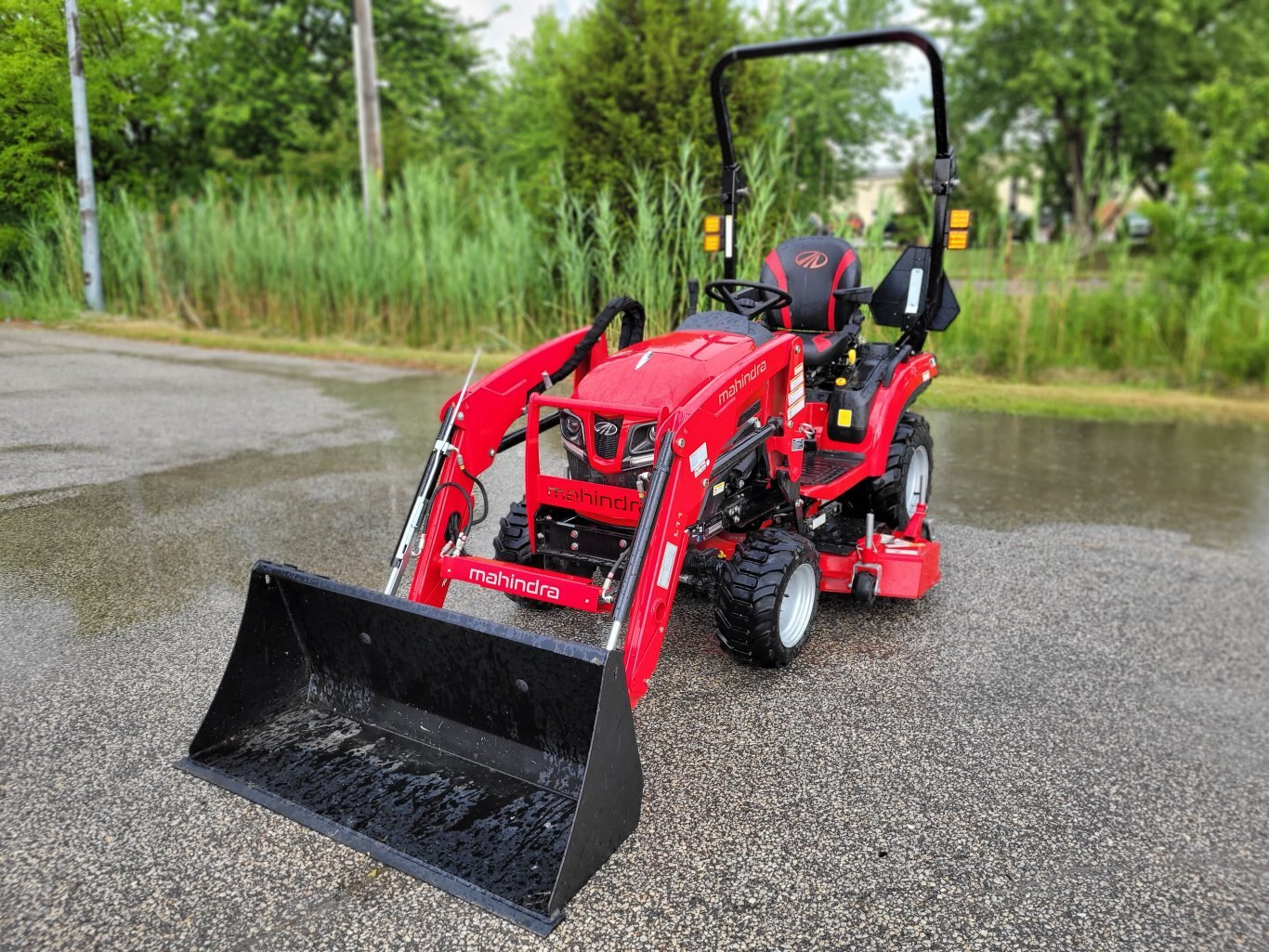

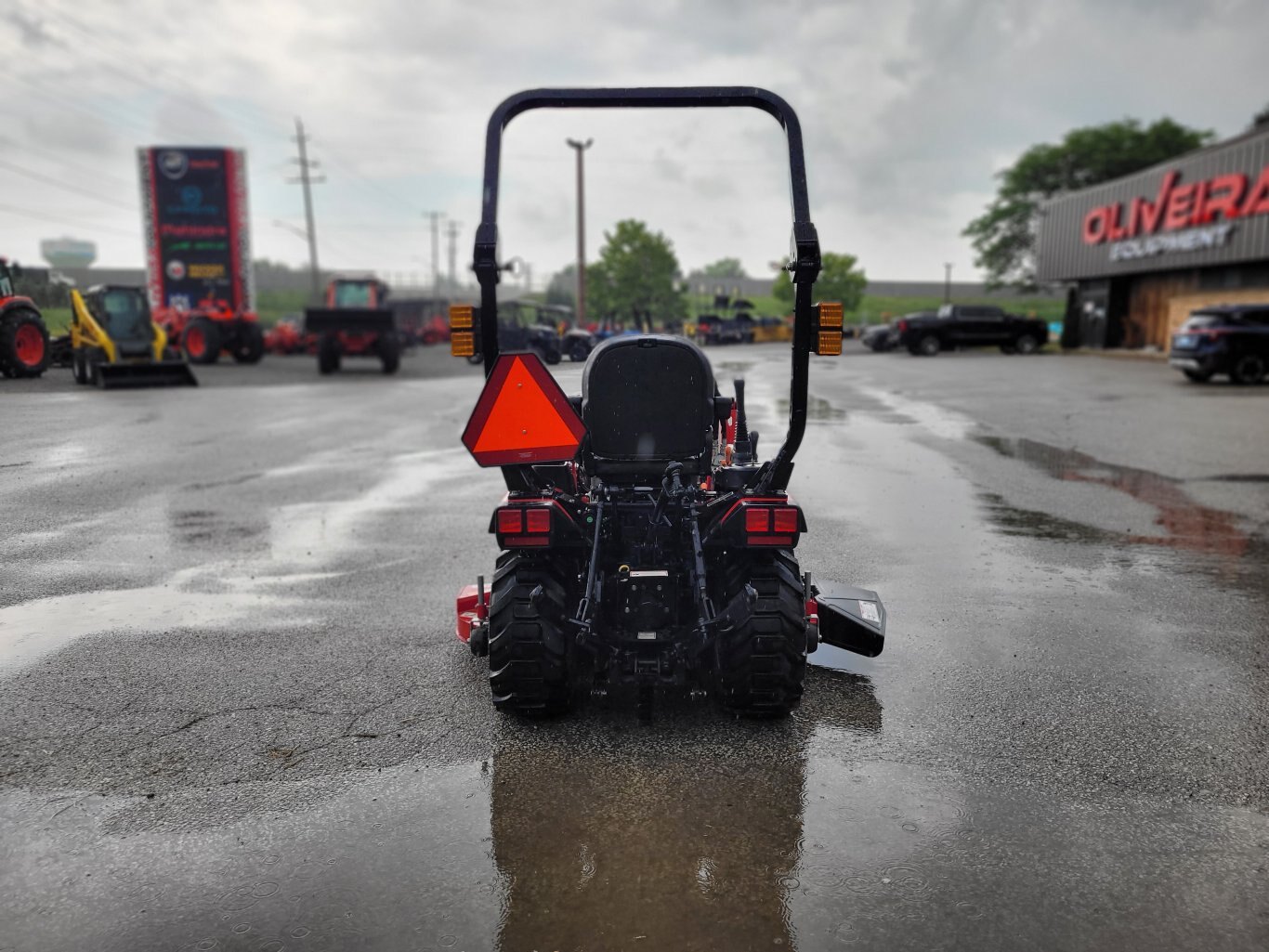

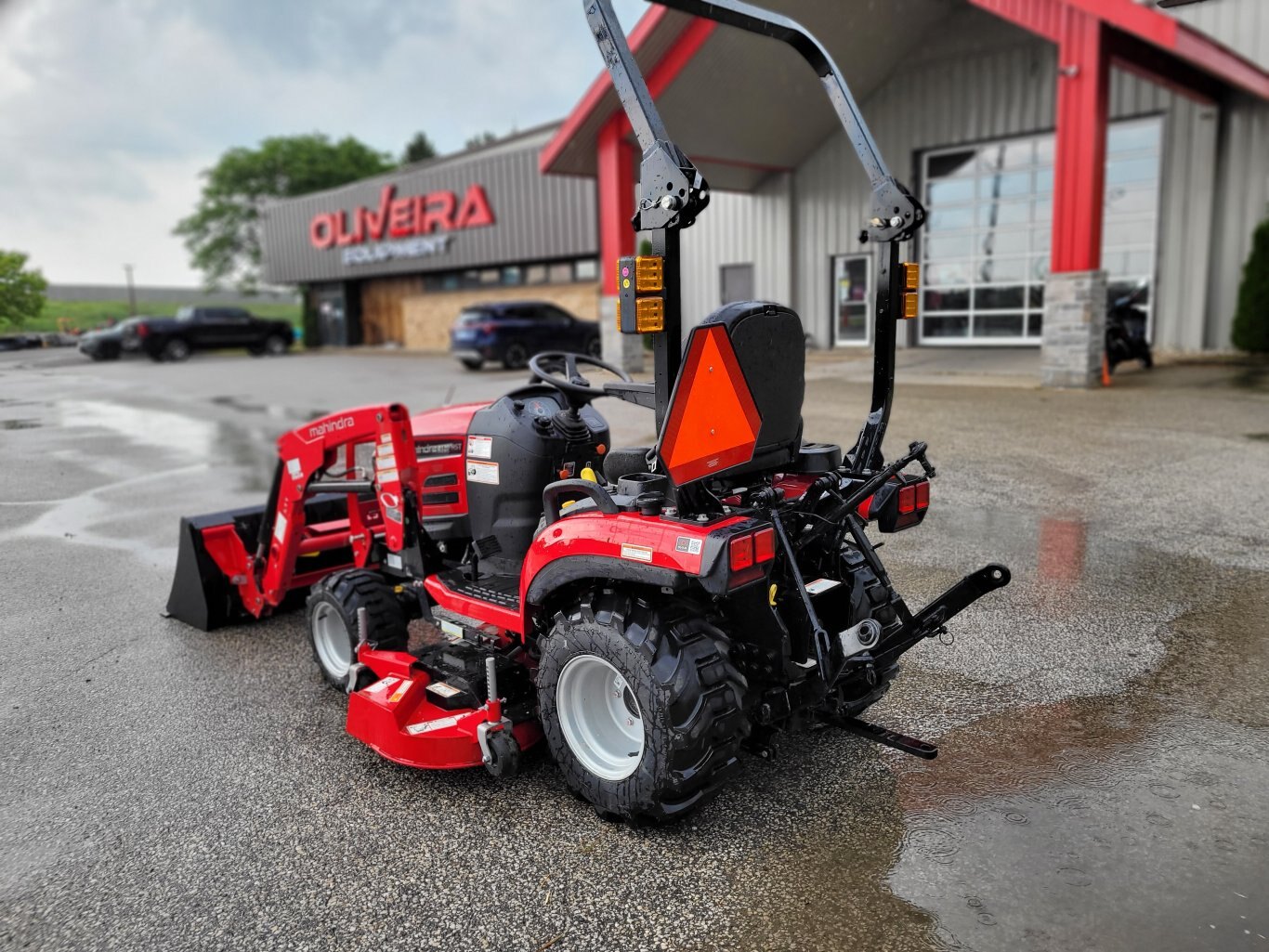

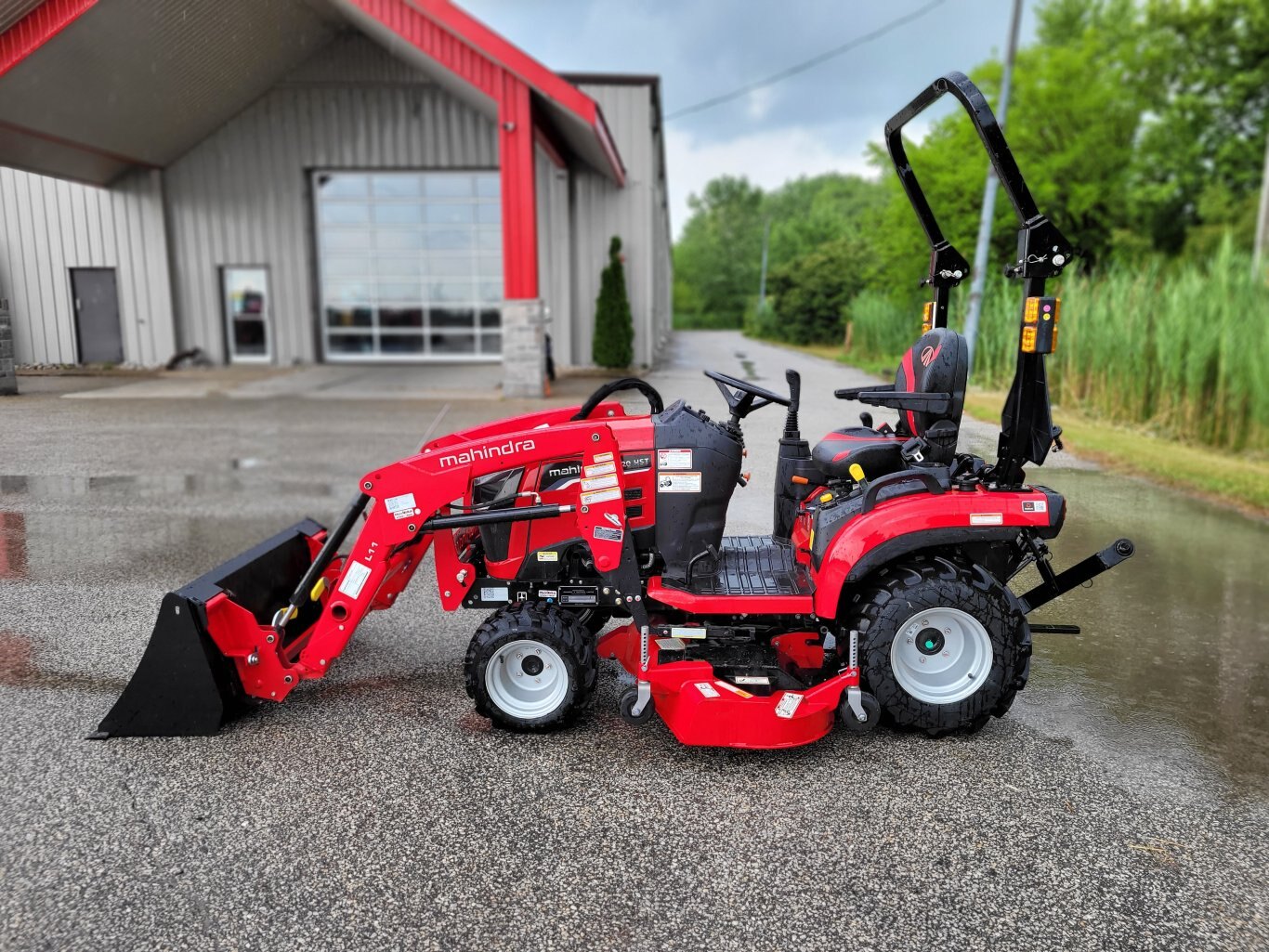

2025 Mahindra 1120 20hp Tractor W/Loader, Mower
In Stock
- Location:
- Tilbury - Equipment
Dealer Price
$24,175 CAD
+ Tax
$70.52
Weekly
120 Months. 8.99% APR $0 Down Payment
Overview
Specifications
engine
drive train
pto
hydraulics
electrical
dimensions
wheels and tires
loader
literature
Documents
FINANCE FOR $71/WEEK
2025 Mahindra 1120 HST with Loader & Mower Deck
0% financing is available – contact for details
-
Engine: 20 HP 3-cylinder diesel
-
Transmission: 2-range Hydrostatic (HST)
-
Drive Type: 4WD
-
Front Loader: Mahindra front-end loader with quick-attach bucket
-
Loader Lift Capacity: 800 lbs at pivot pin
-
Breakout Force (off ground): 1,433 lbs
-
Mower Deck: Mid-mount PTO-driven mower deck (54"/60")
-
Rear PTO: 540 RPM, Category 1
-
Fuel Tank Capacity: 6.6 gallons
-
Warranty: 7-year limited powertrain warranty
Model
1120
Category Name
Tractors
Year
2025
Sale Type
New
Manufacturer
Mahindra
Vin
MBNMCMWADRZL00336
HORSEPOWER
20.1 HP
TRANSMISSION
HST - 2 ranges
Loader Lift Capacity
794 lbs (360.152 kg)
3- POINT HITCH LIFT CAPACITY
770 lbs (349.266 kg)
Engine Type
Naturally Aspirated, Indirect Injection, Water Cooled Diesel
Bore & Stroke [in]
Bore : 3, Stroke : 3.2
Fuel Tank [gal (L)]
6.6 (25)
Number Of Cylinders
3
Engine HP [kW] @ RPM
20.1 (15) @ 2900
Displacement [in3 (cc)]
67.2 (1102)
Brakes
Single Pedal
Transmission
HST - 2 range
Max Speed (mph)
7.3
Number Of Speeds
Infinite
PTO Type
Independent Wet Clutch
Mid PTO RPM
2500 @ 2837
PTO HP (kW)
14 (10.4)
Rear PTO RPM
540 @ 2837
Type
Open Center with Position Control
3-Point Hitch
CAT I
Total Pump Output, Main (GPM)
7.4
Maximum Total Flow [gpm (L/min)]
7.6 (28.7)
Total Pump Output, Steering (GPM)
3.8
3- Point Hitch Lift Capacity @24" Aft [lb (kg)]
771 (350)
Battery
12.6 V, 650 CCA
Alternator
12V, 55A
Weight [lb (kg)]
1620 (735)
Wheelbase [in (mm)]
55.1 (1400)
Overall Width [in (mm)]
46.3 (1177)
Turning Radius [ft (m)]
7.2 (2.2)
Overall Height [in (mm)]
OS 86.6 (2200) Cab 80.5 (2044)
Overall Length [in (mm)]
100.4 (2550)
Minimum Ground Clearance [in (mm)]
6.7 (169)
IND [Front/Rear]
18x8.5-10 / 26x12-12
TURF [Front/Rear]
16x7.5-10 / 24x12-12
Model Number
L11
Digging Depth (in)
3.14
Max Lift Height (in)
73.2
Loader Lift Capacity [lb (kg)]
794 (360)
Literature
| Name | Link |
| Brochure | Download |
MAH-1100-Series-Brochure-Rev-2024-05-10.pdf Model
