Stock #
20958

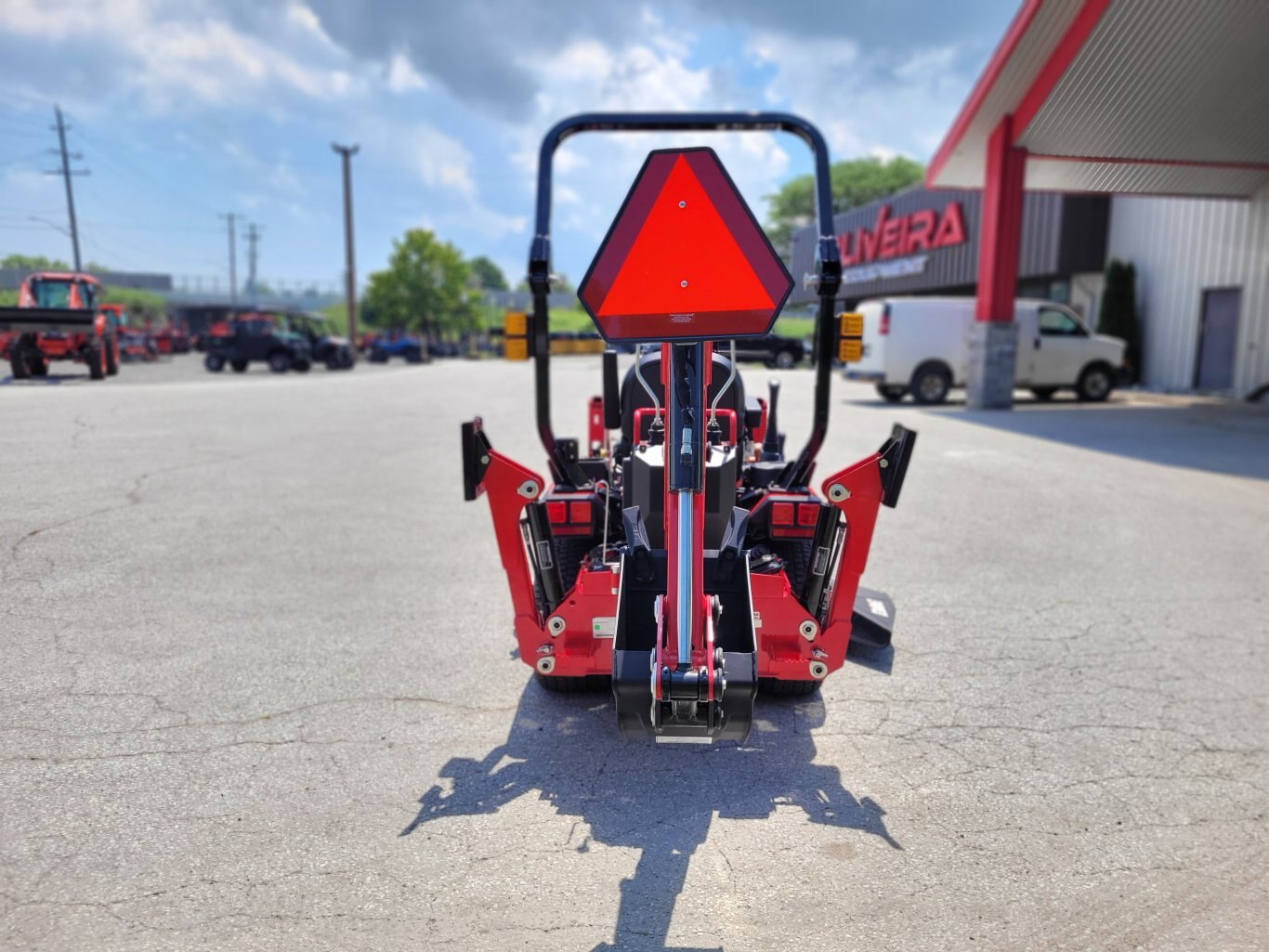

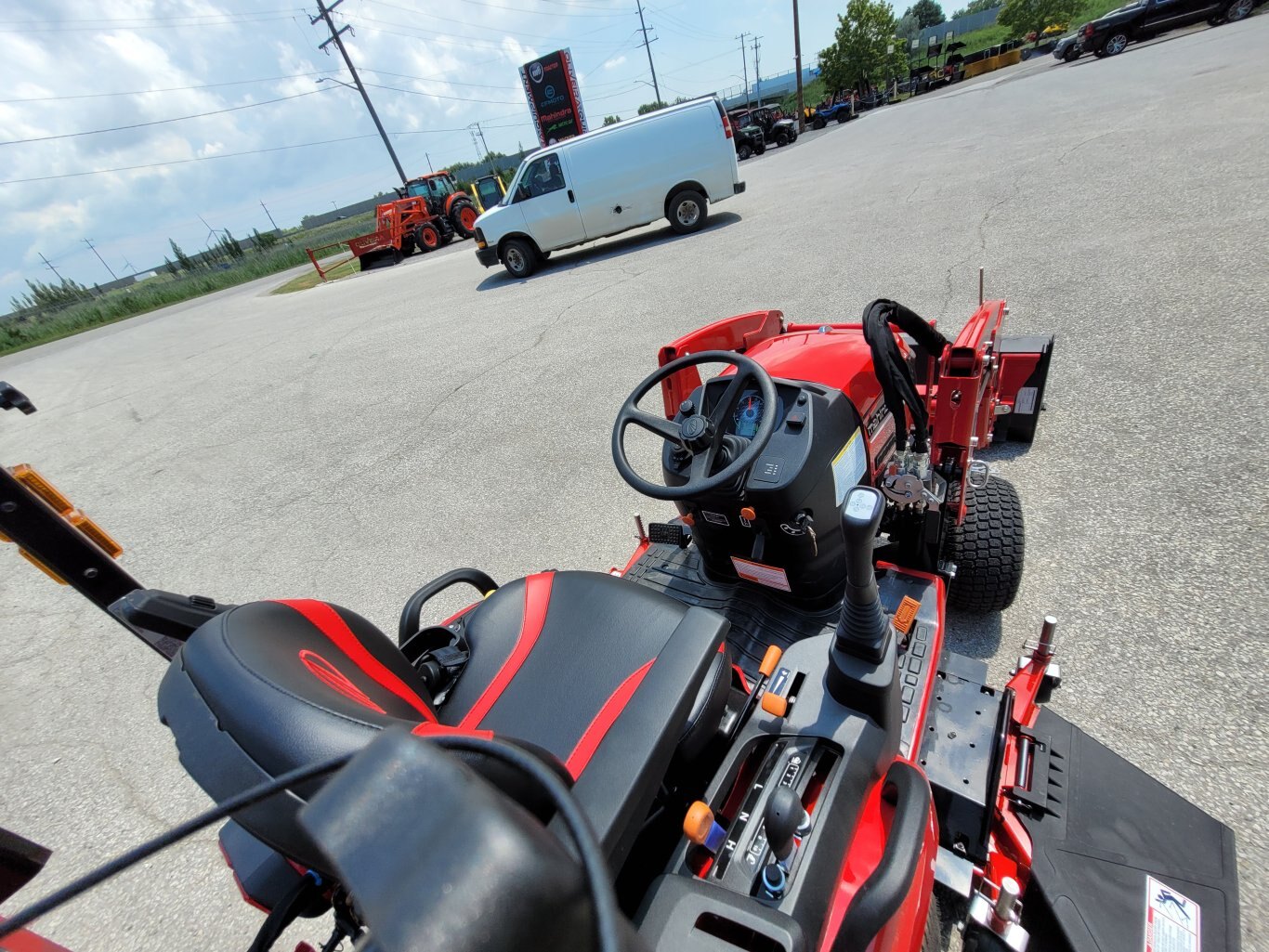

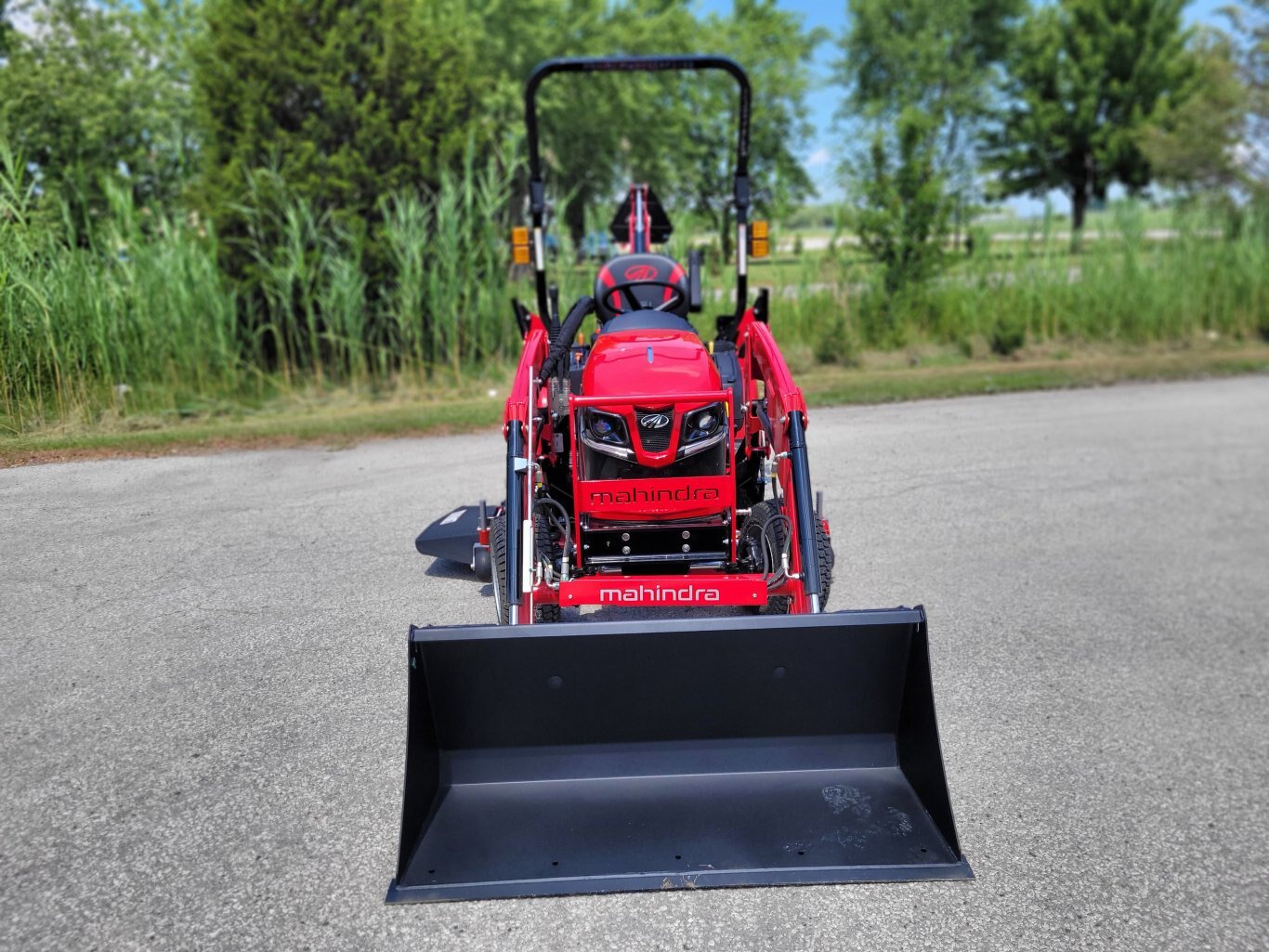

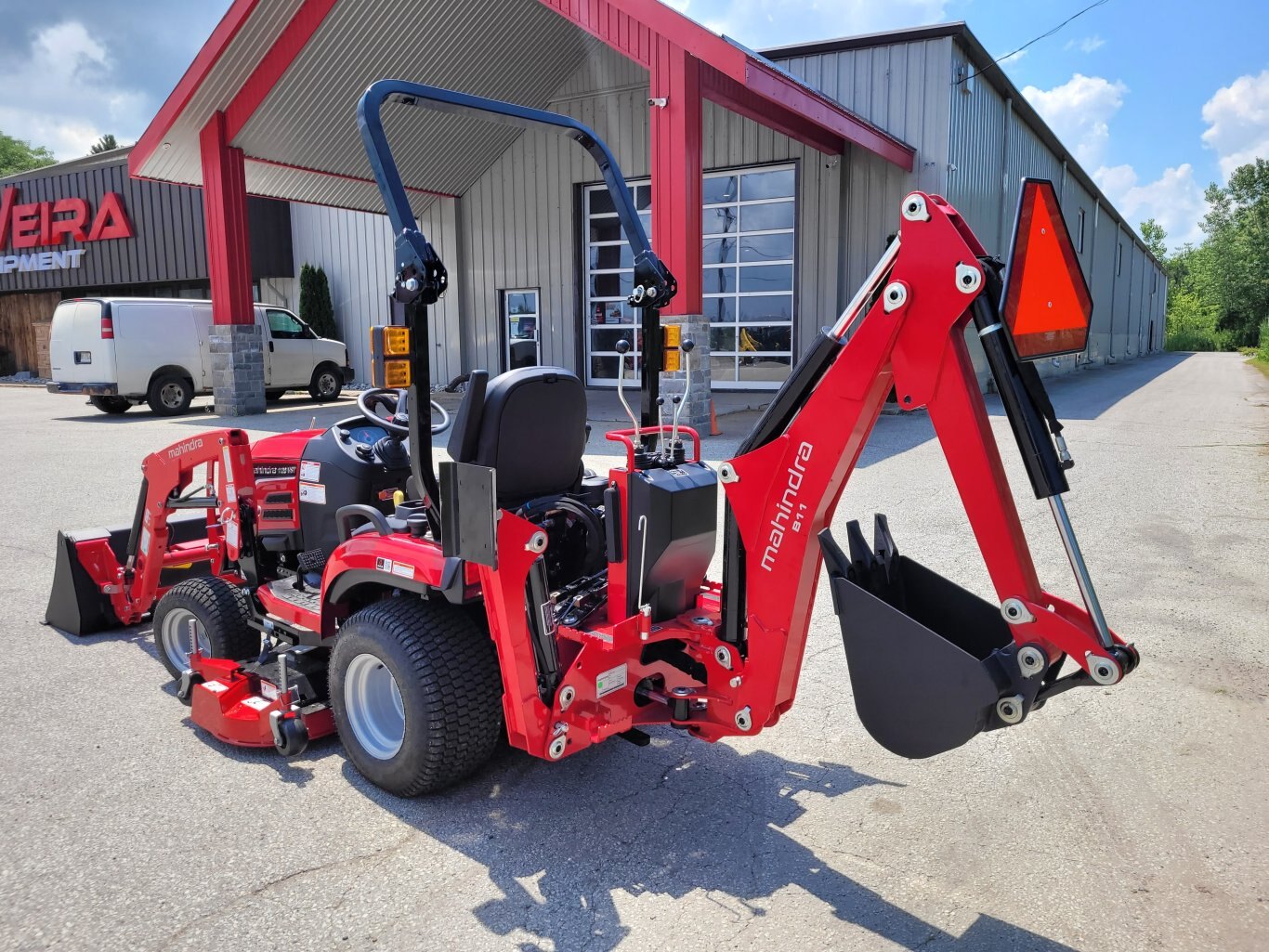

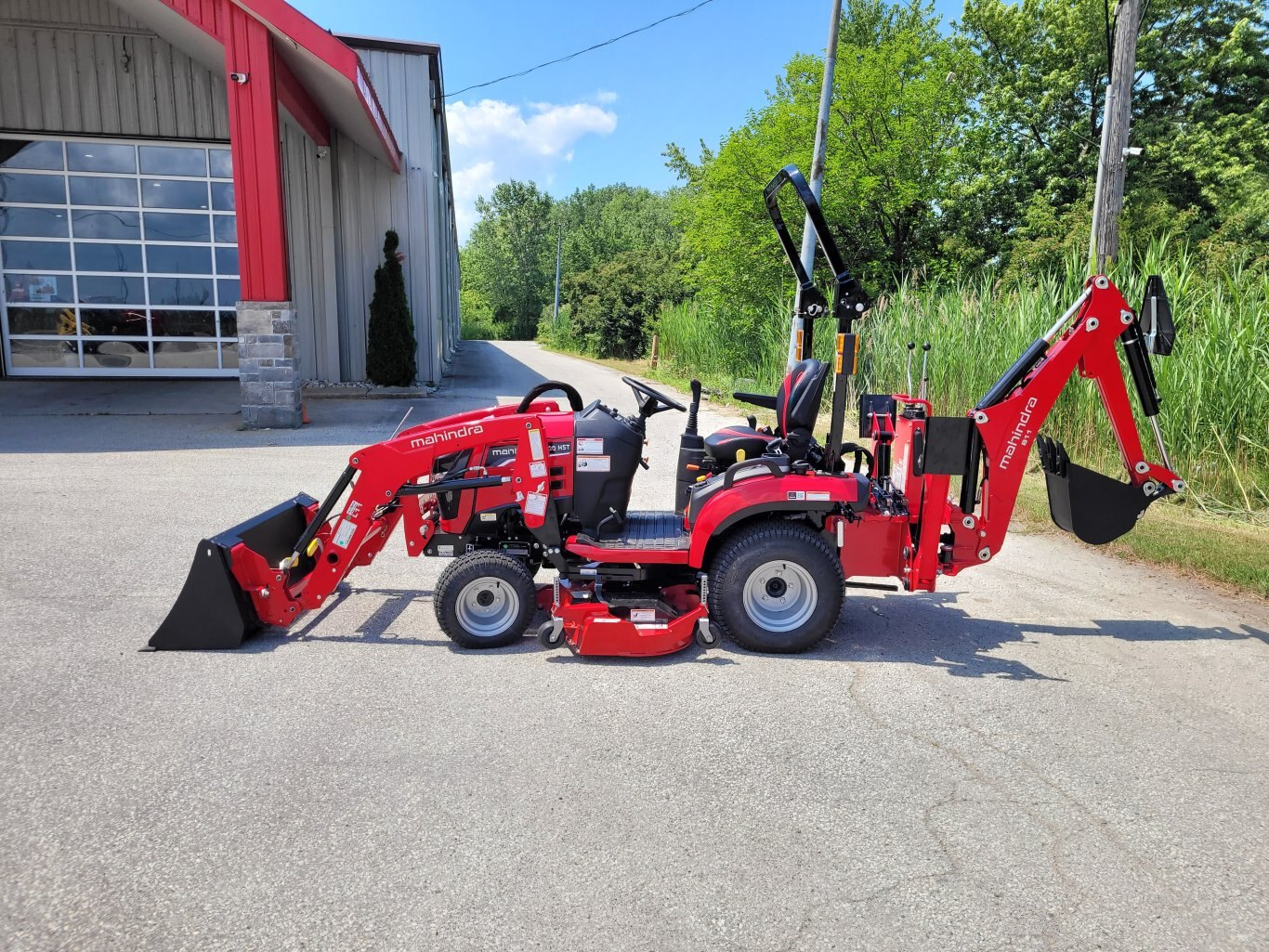

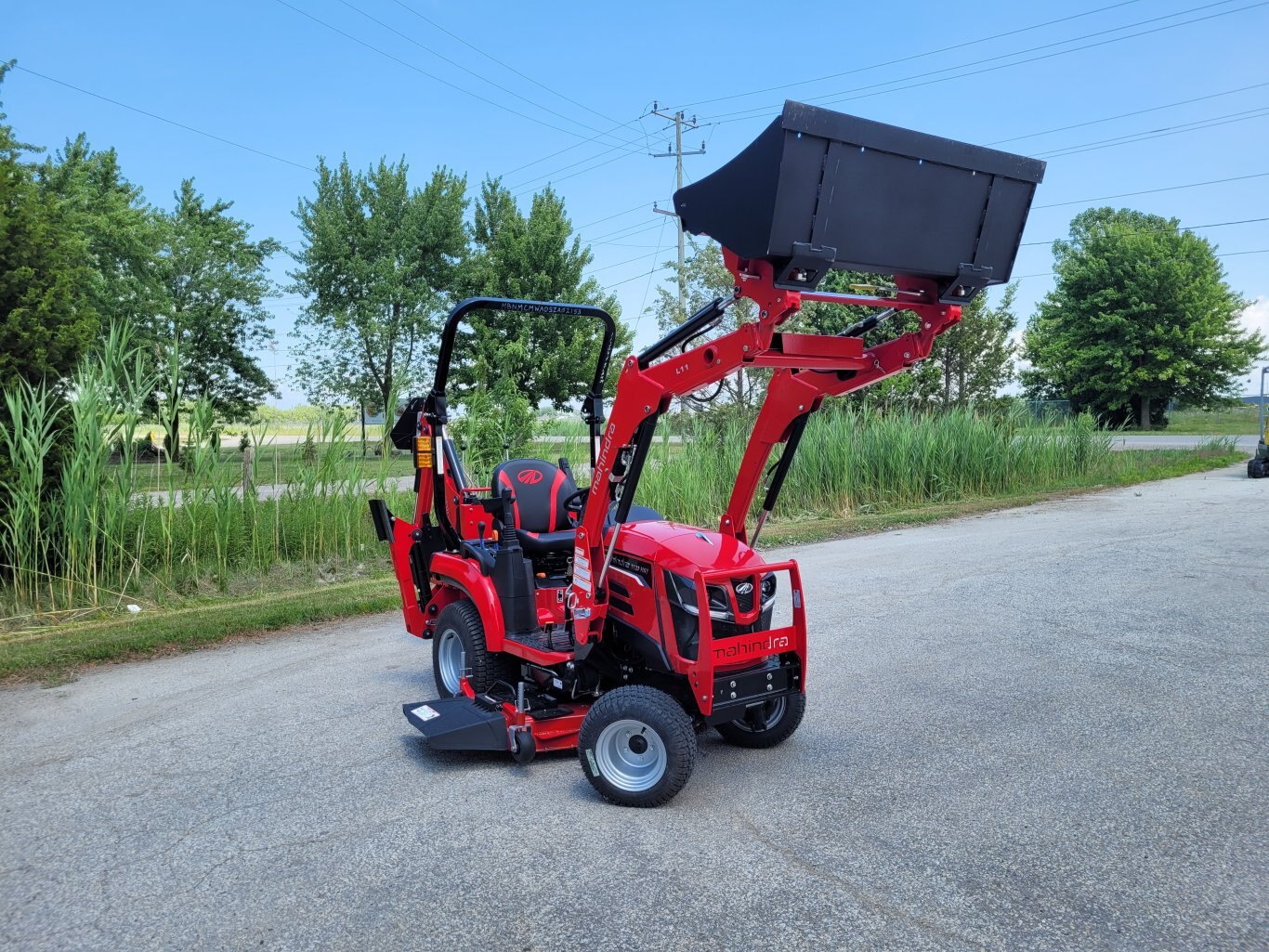

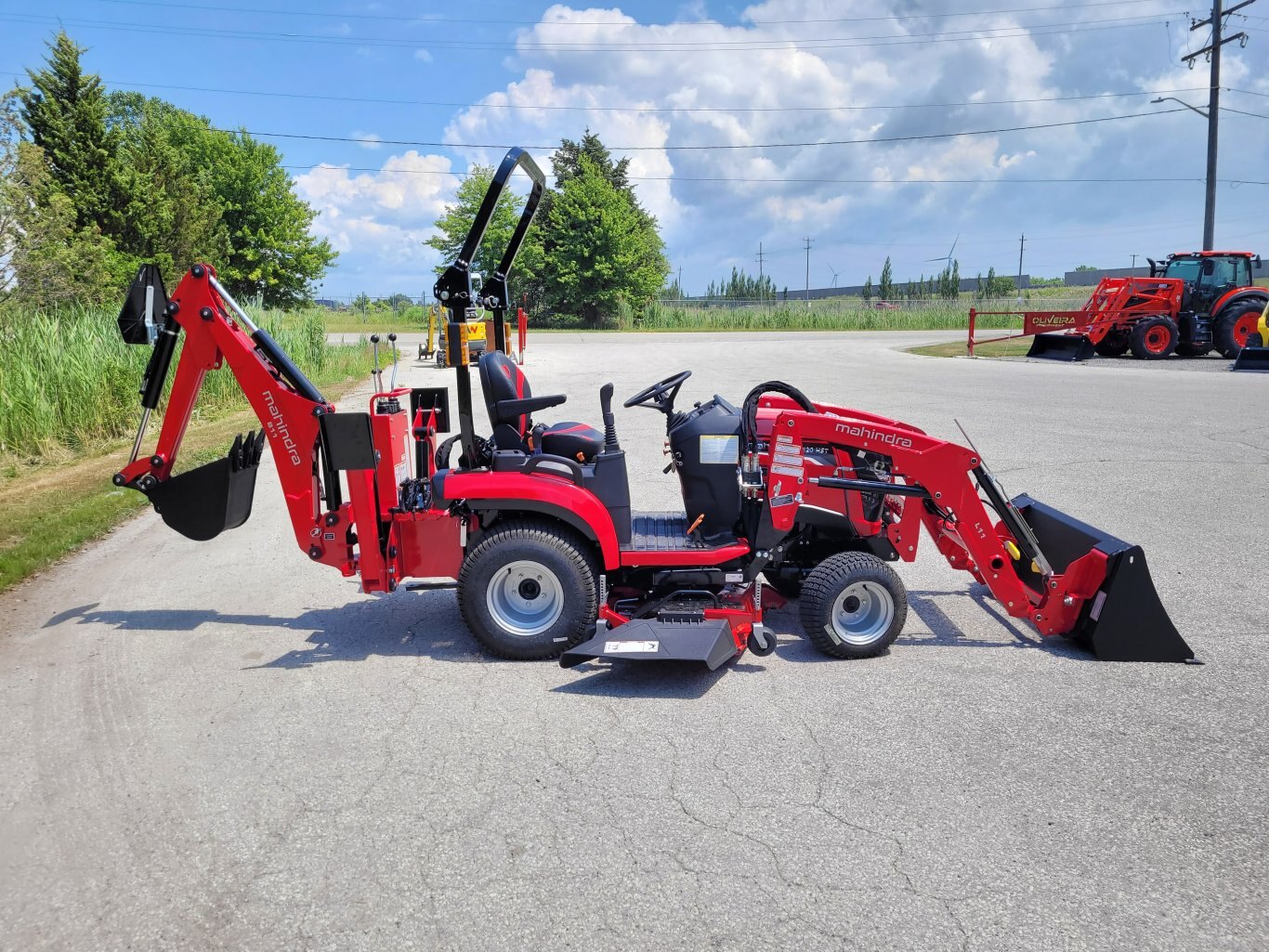

2025 Mahindra 1120 HST 20hp w/Loader, Backhoe, Mower Deck
In Stock
- Location:
- Tilbury - Equipment
Price
$31,775 CAD
$74.23
Weekly
180 Months. 8.99% APR $0 Down Payment
Overview
Specifications
engine
drive train
pto
hydraulics
electrical
dimensions
wheels and tires
loader
literature
FINANCE FOR $75/WEEK
0% FINANCE AVAILABLE CONTACT FOR DETAILS
2025 Mahindra 1120 HST with Loader, Backhoe & Mower Deck
-
Engine: 20 HP 3-cylinder diesel
-
Transmission: 2-range Hydrostatic (HST)
-
Drive Type: 4WD
-
Front Loader: Mahindra loader with quick-attach bucket
-
Loader Lift Capacity: ~800 lbs at pivot pin
-
Breakout Force (off ground): ~1,433 lbs
-
Backhoe: Mahindra backhoe attachment with approx. 6.5–7.5 ft dig depth
-
Mower Deck: Mid-mount PTO-driven mower deck (54"/60")
-
Weight (with attachments): Approx. 2,600–2,800 lbs
-
Warranty: 7-year limited powertrain warranty
Model
1120
Category Name
Tractors
Year
2025
Sale Type
New
Manufacturer
Mahindra
Vin
MBNMCMWADSZA02153
HORSEPOWER
20.1 HP
TRANSMISSION
HST - 2 ranges
Loader Lift Capacity
794 lbs (360.152 kg)
3- POINT HITCH LIFT CAPACITY
770 lbs (349.266 kg)
Engine Type
Naturally Aspirated, Indirect Injection, Water Cooled Diesel
Bore & Stroke [in]
Bore : 3, Stroke : 3.2
Fuel Tank [gal (L)]
6.6 (25)
Number Of Cylinders
3
Engine HP [kW] @ RPM
20.1 (15) @ 2900
Displacement [in3 (cc)]
67.2 (1102)
Brakes
Single Pedal
Transmission
HST - 2 range
Max Speed (mph)
7.3
Number Of Speeds
Infinite
PTO Type
Independent Wet Clutch
Mid PTO RPM
2500 @ 2837
PTO HP (kW)
14 (10.4)
Rear PTO RPM
540 @ 2837
Type
Open Center with Position Control
3-Point Hitch
CAT I
Total Pump Output, Main (GPM)
7.4
Maximum Total Flow [gpm (L/min)]
7.6 (28.7)
Total Pump Output, Steering (GPM)
3.8
3- Point Hitch Lift Capacity @24" Aft [lb (kg)]
771 (350)
Battery
12.6 V, 650 CCA
Alternator
12V, 55A
Weight [lb (kg)]
1620 (735)
Wheelbase [in (mm)]
55.1 (1400)
Overall Width [in (mm)]
46.3 (1177)
Turning Radius [ft (m)]
7.2 (2.2)
Overall Height [in (mm)]
OS 86.6 (2200) Cab 80.5 (2044)
Overall Length [in (mm)]
100.4 (2550)
Minimum Ground Clearance [in (mm)]
6.7 (169)
IND [Front/Rear]
18x8.5-10 / 26x12-12
TURF [Front/Rear]
16x7.5-10 / 24x12-12
Model Number
L11
Digging Depth (in)
3.14
Max Lift Height (in)
73.2
Loader Lift Capacity [lb (kg)]
794 (360)
Literature
| Name | Link |
| Brochure | Download |
Model
1120
Category Name
Tractors
Year
2025
Sale Type
New
Manufacturer
Mahindra
Vin
MBNMCMWADSZA02153
Quantity
1
HORSEPOWER
20.1 HP
TRANSMISSION
HST - 2 ranges
